DRAWING REVIEW
Review drawings, dimensions and specifications before production confirmation.
CUSTOM BOLT BY DRAWING

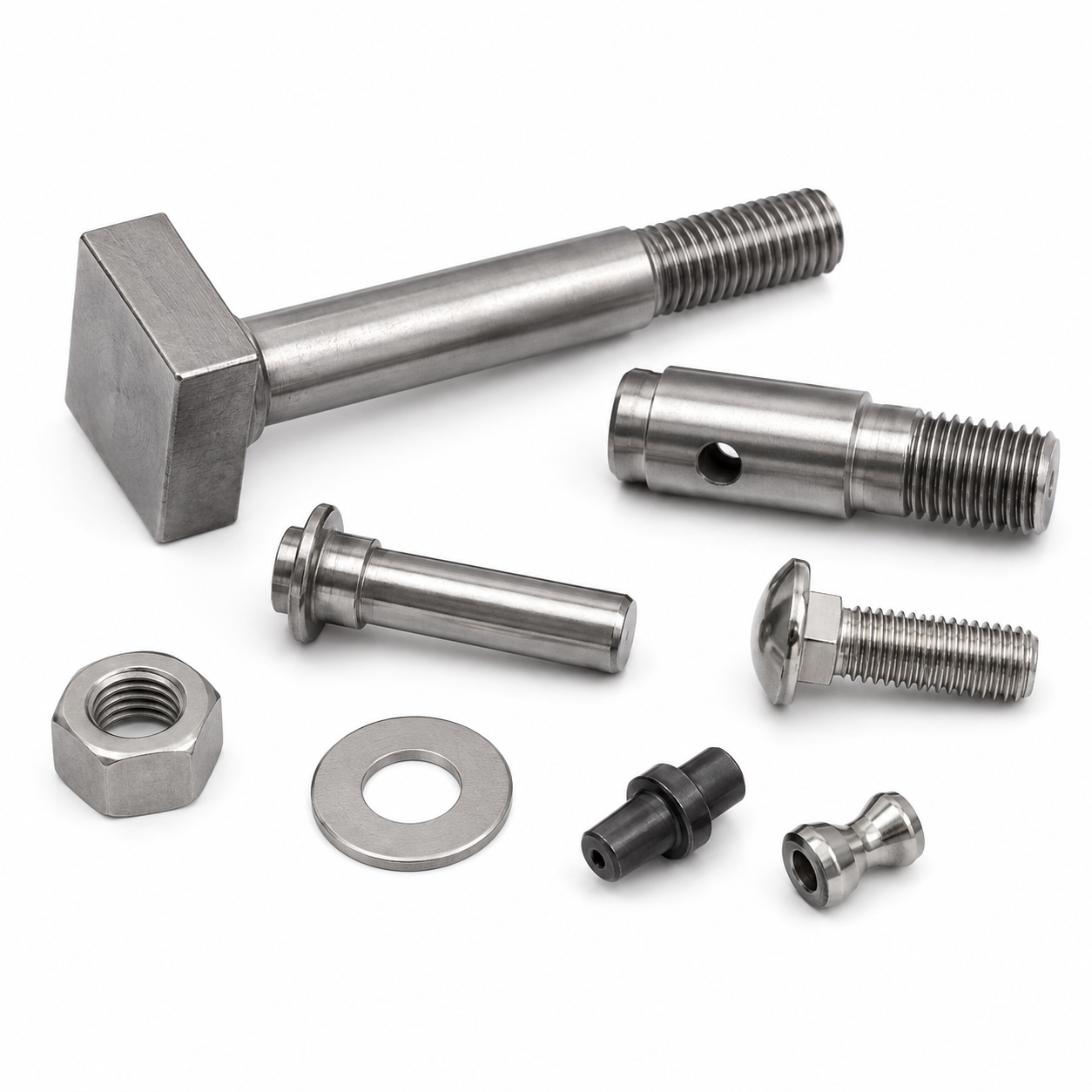

CUSTOM FASTENERS BY DRAWING
Custom dimensions, threads, materials, strength grades and surface treatments based on project requirements.
01
STANDARD
示例Customer Drawing
示例DINISOASTM
02
MATERIAL
示例Carbon Steel示例Alloy Steel示例Stainless Steel
03
SIZE RANGE
示例Custom Dimensions by Drawing
04
CUSTOMIZABLE
YES
TECHNICAL DATA
TECHNICAL SPECIFICATIONS
Available specifications are shown below. Custom requirements can be reviewed before quotation.
01
STANDARD
示例Customer Drawing
示例DIN
ISO
ASTM
02
SIZE RANGE
示例Custom Dimensions by Drawing
03
MATERIAL
示例Carbon Steel
示例Alloy Steel
示例Stainless Steel
04
THREAD
示例Metric Coarse Thread
示例Metric Fine Thread
示例Custom Thread
05
CUSTOMIZABLE
YES
06
MOQ
示例500 PCS
07
LEAD TIME
示例20–30 Days
DRAWING-BASED PRODUCTION
CUSTOMIZATION CAPABILITY
Support for non-standard fasteners based on drawings, samples and technical specification review.
02
MATERIAL & GRADE
Material and strength grade are confirmed according to project requirements.
03
THREAD & DIMENSIONS
Thread type, diameter, length and special geometry can be evaluated.
04
SURFACE TREATMENT
Hot-dip galvanizing, zinc plating and other confirmed finish requirements can be reviewed.
INSPECTION & TRACEABILITY
QUALITY & DOCUMENTATION
Inspection scope and available documentation are confirmed according to the product standard and customer specification.
MATERIAL CHECK
Material and certificate review where applicable.
DIMENSIONAL INSPECTION
Critical dimensions and tolerance verification according to specification.
THREAD INSPECTION
Thread form and gauge inspection according to the confirmed requirement.
SURFACE / COATING
Surface treatment and coating inspection where required.
